SPECIFICATIONS

Brand Name: MOES
Choice: yes
Communication method: Wi-Fi
Frequency Band: 2400-2483.5MHz
Hign-concerned Chemical: None
Input: 100-240V ; 50/60Hz
Maximum Radio Transmit Power: 20dBm
Maximum load per channel: 200W
Maximum total load: 600W
Operating Humidity: 5% to 90% RH (Non-condensing)
Operating Temperature: 0°C~40°C
Origin: Mainland China
Product Model: TPP06
Product Name: Smart Control Panel Mini
Size(excluding base): 86*86*11.5mm
Size(including base): 86*86*35.5mm
Wireless Protocol: Wi-Fi, Sigmesh, IR
semi_Choice: yes

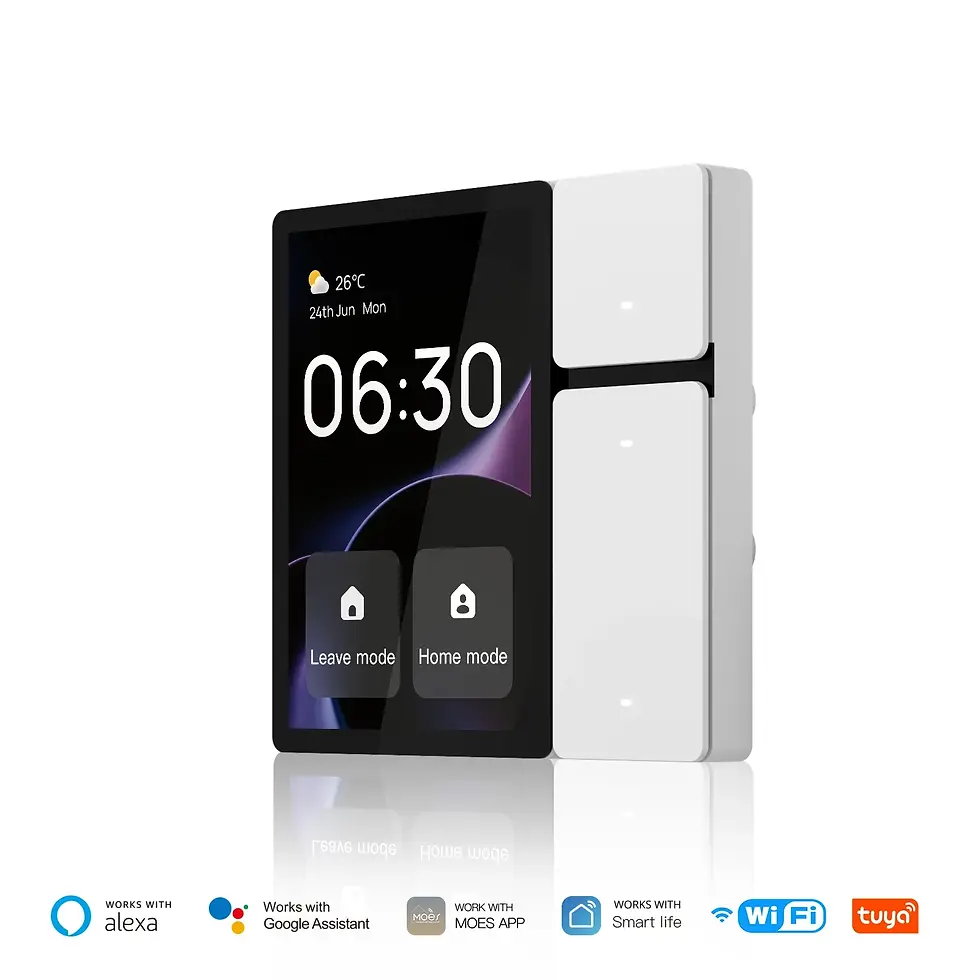

 MOES Tuya WiFi 3.5-inch Smart Control Panel Screen 3 Relays 3 Physical Buttons IR Remote Control Bluetooth Sigmesh Hub Built-in

 BY-MOES



 Packing List


Smart Control Panel Mini*1

User Manual *1

Screw *4
Reset pin*1

 Note: The center control panel does not support voice or video intercom.







  Comparison with our other control panels

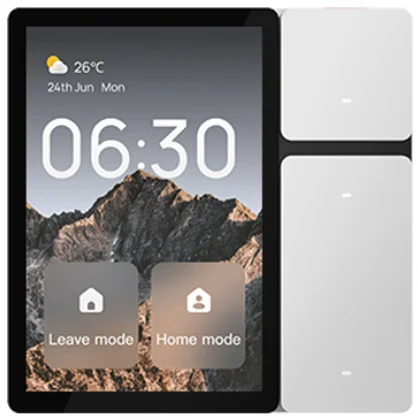

3.5 inch style link

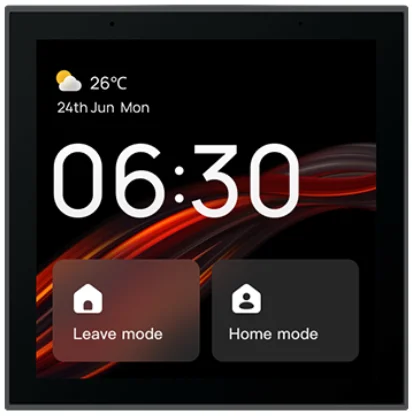

4-inch style link

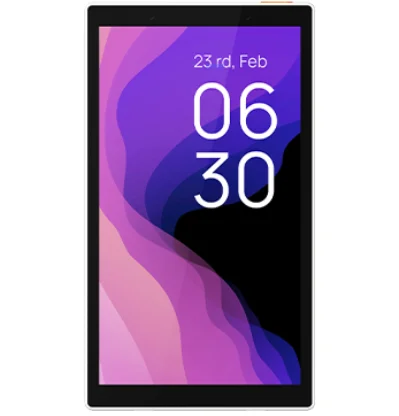

5-inch style link






Applicable regions


Europe
The Middle East
Asia-Pacific
North America
Latin America
Japan


Europe
The Middle East
Asia-Pacific


North America
Latin America
Japan






Screen


3.5-inch
320*480


4-inch
480*480


5-inch
480*854






Gateway


Bluetooth Mesh gateway


Zigbee gateway/
Bluetooth Mesh gateway


Zigbee gateway/
Bluetooth Mesh gateway






Voice control


Works with Alexa/
Works with Google Assistant


Alexa Built-in


Alexa Built-in
